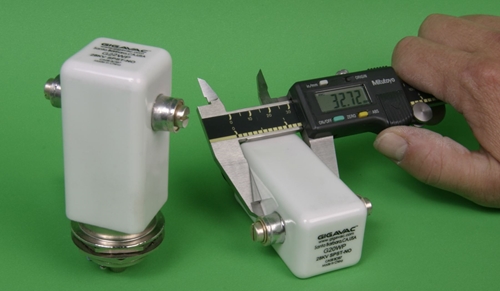

G20 High Voltage Relay Normally open (NO) 28kV
G20 High Voltage Relay Normally open (NO) 28kV
A single stationary contact and a moveable contact furnish a simple on-off configuration.
Forms include normally open, NO, and normally closed, NC. Normally open relays provide voltage isolation until coil power is applied. With coil power applied there is continuity through the relay contacts. Normally closed relays provide continuity through closed contacts until coil power is applied where the relay contacts open providing isolation.
GIGAVAC offers several design styles including High Voltage and RF reed relays along with traditional ceramic vacuum and gas filled High Voltage Relays. Each of these relay design types offer unique advantages depending on the application.
G20 Low stable contact resistance for high carry current and low voltage drop.
Low loss in RF circuits.
Mounting options in any axis.
Additional information
| Coil Voltage | 115VDC, 12VDC, 26,5VDC |
|---|---|
| Contact function | Normally open (NO) |
| Contacts | SPST |
| Max current | 110A |
| Max system voltage | 28kV |
| Mechanical cycles | 2.000.000 |
| Sector | Factory Automation, Infrastructure and Energy |
