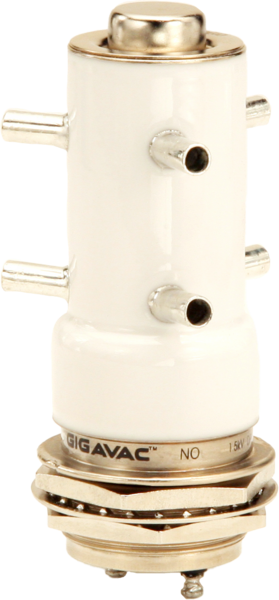

G15SPD High Voltage Relay Double change over (2xCO) 15kV
G15SPD High Voltage Relay Double change over (2xCO) 15kV
Dual circuit functions can be controlled with a single coil signal. Since the contacts are mechanically linked in many applications one of the contact sets are used as auxiliary contacts to provide circuit feedback indicating relay contact position.
As with our other High Voltage Relays GIGAVAC offers several design styles of vacuum and gas filled High Voltage Relays. Vacuum or gas as a dielectric each offer unique advantages depending on the application.
G15SPD Gas dielectric excellent for effectively bounceless make load applications.
Small footprint provides space efficient design.
Mounting options in any axis.
Solder or convenient threaded HV connections.
Additional information
| Coil Voltage | 12VDC, 26,5VDC |
|---|---|
| Contact function | Change over (CO) |
| Contacts | DPDT |
| Max current | 12A |
| Max system voltage | 1,5kV |
| Mechanical cycles | 1.000.000 |
| Sector | Factory Automation, Infrastructure and Energy |
